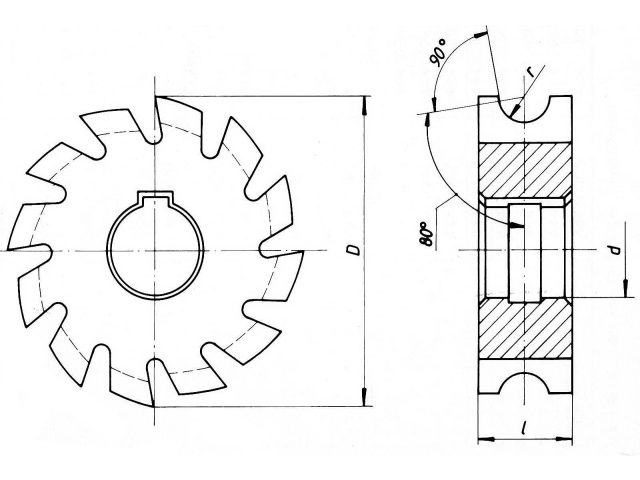

Cutters for concave shaping according to DIN 855
| r | l | D | d | z |
|---|---|---|---|---|
| mm | ||||
| 1 | 6 | 50 | 16 | 16 |
| 1,25 | 6 | 50 | 16 | 16 |
| 1,5 | 8 | 50 | 16 | 16 |
| 1,6 | 8 | 50 | 16 | 16 |
| 2 | 9 | 50 | 16 | 16 |
| 2,5 | 10 | 63 | 22 | 14 |
| 3 | 12 | 63 | 22 | 14 |
| 3,5 | 14 | 63 | 22 | 14 |
| 4 | 16 | 63 | 22 | 14 |
| 5 | 20 | 63 | 22 | 14 |
| 6 | 24 | 80 | 27 | 12 |
| 8 | 32 | 80 | 27 | 12 |
| 10 | 36 | 100 | 32 | 10 |
| 12 | 40 | 100 | 32 | 10 |
| 14 | 45 | 125 | 32 | 10 |
| 16 | 50 | 125 | 32 | 10 |
| 18 | 55 | 125 | 32 | 10 |
| 20 | 60 | 125 | 32 | 10 |
- relieved
- with keyway slot according to DIN 138
- HSS (EMo5) or HSS-E (EMo5Co5)
