For involute spline shafts according to DIN 5480

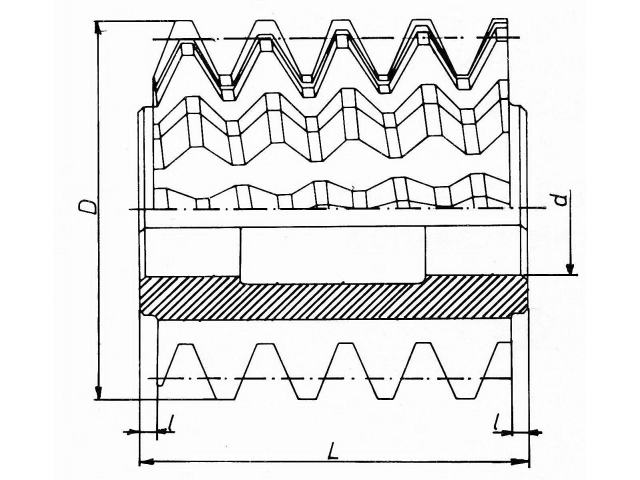

| Module | Hob size | ||||
|---|---|---|---|---|---|
| D | d | L | l | ||
| mm | mm | ||||
| 1 | 50 | 22 | 31 | 3 | 14 |
| 1,25 | 50 | 22 | 31 | 3 | 14 |
| 1,5 | 56 | 22 | 38 | 4 | 14 |
| 2 | 63 | 27 | 46 | 4 | 14 |
| 2,5 | 70 | 27 | 56 | 4 | 14 |
| 3 | 80 | 32 | 69 | 4 | 14 |
| 4 | 90 | 32 | 78 | 4 | 14 |
| 5 | 100 | 32 | 88 | 4 | 14 |
| 6 | 110 | 40 | 108 | 4 | 14 |
| 8 | 125 | 40 | 138 | 5 | 14 |
| 10 | 140 | 40 | 170 | 5 | 14 |
- reference profile acc. to DIN 5480
- pressure angle α = 30°
- accuracy class "A" acc. to DIN 3968
- single start, right-hand with keyway slot acc. to DIN 138 szerint
- HSS-E (EMo5Co5)
