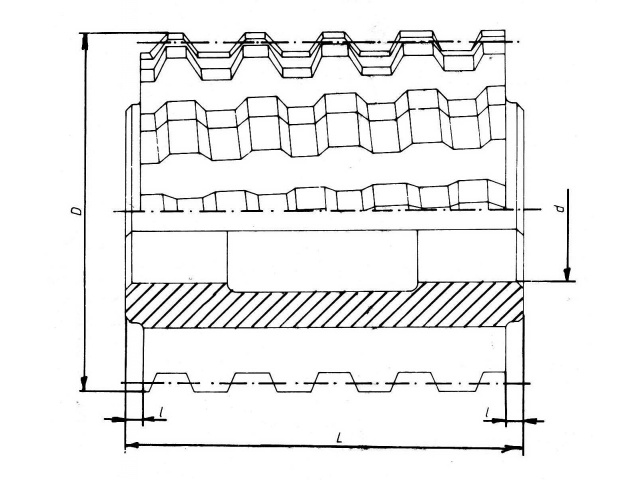

Hobs for gear belt pulley with spacing in inches according to DIN/ISO 5294
- reference profile acc. to DIN/ISO 5294
- topping profile
- relief-ground
- accuracy class "A" acc. to DIN 3968
- single start right-hand with keyway slot acc. to DIN 138
- HSS-E (EMo5Co5)
| Type | Pitch | z | D | d | L | l | z |
|---|---|---|---|---|---|---|---|
| Inch | mm | ||||||
| MXL | 2/25” | z =14- | 50 | 22 | 32 | 3 | 14 |
| XL | 1/5” | z = 10- | 63 | 27 | 50 | 3 | 14 |
| L | 3/8” | z = 10- | 90 | 27 | 56 | 3 | 14 |
| H1 | 1 /2 | z =14-19 | 90 | 27 | 69 | 3 | 14 |
| H2 | 1 /2” | z = 20- | 90 | 27 | 69 | 3 | 14 |
| XH | 7/8” | z = 18- | 90 | 32 | 100 | 4 | 12 |
| XXH | 1 ¼” | z = 18- | 90 | 32 | 125 | 4 | 12 |
